Timetracker Reporting API overview
With 7pace Timetracker 5, we introduce the Reporting API v3. This API encompasses Timetracker data such as worklogs, the work items linked to worklogs, and the ability to build queries to work items and their hierarchy.
The Timetracker Reporting API and most of the syntax supported is based on the OData framework. For an overview on OData query language, please follow these pages: OData documentation and Aggregation Extension. If you see something that's not working, please let us know.
For the entire API reference, please see API reference.

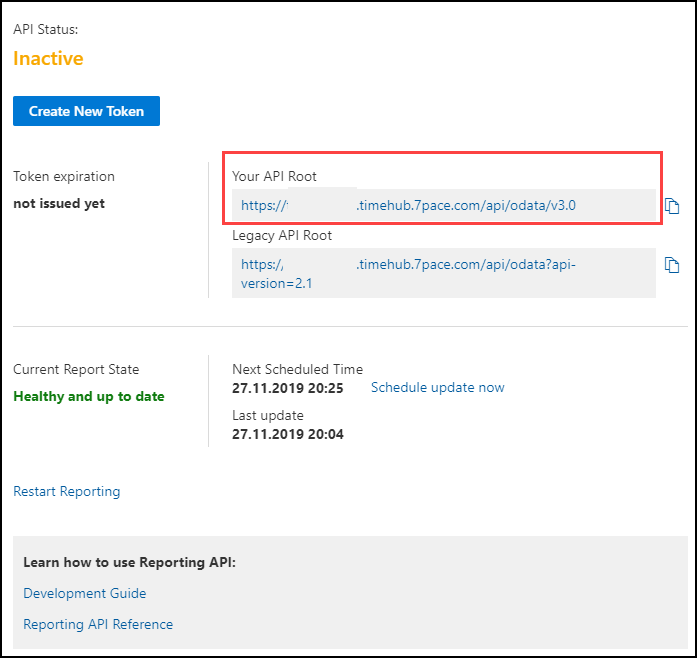

To find your Reporting API URL, navigate to the "Settings" tab of Timetracker -> Reporting & REST API section.
Reporting and API Limits
When Reporting is enabled, there are several things of which you should be aware. First, the Service Account should be enabled to make the Reporting API work.
All data displayed in 7pace Timetracker that is related to work items, switches to use the Reporting API internally. This means that changes to work items in DevOps might not be reflected immediately in the interface, but may take between two minutes to an hour to display. To force an update, please navigate to Settings -> Reporting and API -> API and click "Schedule update now".
The API returns data as paged:
- Worklogs endpoints return data by 1000 items per page
- All endpoints related to work items return data by 100 items per page
When data is paged, there is a "@odata.nextLink" property presented in the response object, with a link to the next page.
Please check out the 7pace website for general API limits applied both for REST and Reporting API.
Note: Abuse or excessively frequent requests to GitHub via the API may result in the temporary or permanent suspension of your Account's access to the API. GitHub, in our sole discretion, will determine abuse or excessive usage of the API. We will make a reasonable attempt to warn you via email prior to suspension.
You may not share API tokens to exceed GitHub's rate limitations.
API endpoints overview
This overview details the purpose and intended use of every Reporting endpoint that 7pace Timetracker provides.
In addition to the standard OData parameters that Timetracker provides, there are also several extending options to the query; please see the links, below, for more detail.
Note: Worklog time is provided in seconds; if you require hours in your environment, please divide PeriodLength (and all similar properties in the API) by 3600.
WorkItem Fields Naming Convention
Due to OData specifics, we can’t use a standard DevOps delimiter for field references, and therefore, we use “_” in field names instead of “.” everywhere.
Example: If the DevOps field name is “System.Id”, it will be “System_Id” in Timetracker Reporting API responses.
Keep in mind that for custom fields parameters, you must provide the original DevOps field reference (so if you have “Some.CustomField”, you should pass it to the customFields parameter unchanged). Please refer to this section for additional details on custom fields.
worklogsOnly
This endpoint is the fastest one; it only provides data related to worklogs without joining worklogs to the related work items.
If you need to integrate to other systems based on work item IDs only, this is the endpoint you should choose.
Usage scenarios:
- Report: "How many hours did every user add into the system during a specific period?"
/workLogsOnly?apply=filter(Timestamp ge 2019-11-01T00:00:00Z and Timestamp lt 2019-12-01T00:00:00Z)
/groupby((User/Name),aggregate(PeriodLength with sum as PeriodLength))
&$orderby=User/Name - "Sum of time for the whole team during specific date range"
/workLogsOnly?filter(Timestamp ge 2019-11-01T00:00:00Z and Timestamp lt 2019-12-01T00:00:00Z)
/aggregate(PeriodLength with sum as PeriodLength) - Scenarios with aggregating worklogs by User, Activity Type, Budget, Date and others
worklogsWorkItems
This endpoint provides data on all worklogs, but also includes information on the work item that the worklog linked to in the work item property.
The workItem field contains all standard fields that DevOps has itself and additional fields CustomStringField1-CustomStringField5, CustomNumericField1-CustomNumericField5, CustomBooleanField1-CustomBooleanField5.

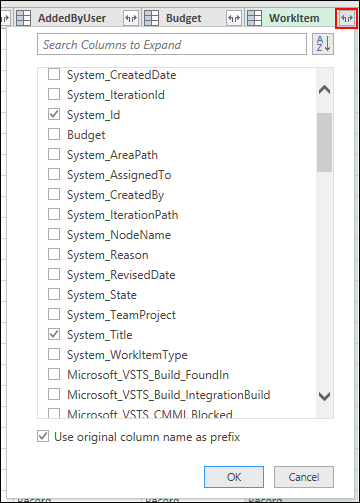

Use these fields to load data from fields you created for work items manually and that are not a part of any DevOps standard template.
Note: There is no way to load HTML or text fields over Timetracker's Reporting API.
Usage scenarios:
- Report: "Team personal time per Project"
Sample query:
/workLogsWorkItems?$apply=groupby((User/Name,WorkItem/System_TeamProject,WorklogDate/ShortDate),
aggregate(PeriodLength with sum as PeriodLength))
&$orderby=WorklogDate/ShortDate desc - Report: "Distribution of time per project"
/workLogsWorkItems?$apply=groupby((WorkItem/System_TeamProject),
aggregate(PeriodLength with sum as PeriodLength))
&$orderby=WorkItem/System_TeamProject - Scenarios with aggregating worklogs by Project, Area Path, Iteration, Assigned To and others
workItems
As opposed to the worklogsOnly and worklogsWorkItems enpoints, this endpoint (and workItemsHierarhy, workItemsHieararchyAnyLevel) provides you with a way to retrieve time data already aggregated by work items.
The workItems endpoint displays all the standard fields of work items and the ability to get any custom field created in work items.
Further, this endpoint provides information as a flat object with combined information from DevOps and Timetracker, extending work item objects with the following fields from Timetracker:
- TrackedItself - sum of time for all related worklogs
- TrackedItselfBillable - sum of Billable time for all related worklogs
- BudgetAssignmentType - type of budget assignment for this work item
- Budget - budget or empty
- ParentItem - optional property containing parent work item, if present, click here on how to retrieve linked optional properties in Timetracker Reporting API
- CustomStringField1-5, CustomNumericField1-5 and CustomBooleanField1-5 can be used to retrieve non-standard fields from work items, please click here for details.
Usage scenarios:
- Get all work items that have time tracked on them:
/workItems?$filter=TrackedItself gt 0
- Get a summary on an Iteration: how many hours tracked on a specific iteration:
/workItems?$filter=TrackedItself gt 0 and System_IterationPath eq 'Project Name/Iteration Path'
workItemsHierarchy / workItemsHierarchyAllLevels
Both workItemsHierarchy and workItemsHierarchyAllLevels provide information similar to workItems endpoint, but allows you to also get information on Parent-Children.
The key differences between workItemsHierarchy and workItemsHierarchyAllLevels are the following:
- workItemsHierarchy by default returns only items that do not have parents (e.g. Epics) and it is possible to navigate to children through parents.
- *workItemsHierarchyAllLevels returns data irrelevant of the Parent-Children hierarchy, so it can return the Parent and its Child in the same response, on the same level, if the user doesn’t apply the correct filtering. It is up to the API consumer to provide the correct filtering, e.g. by work item type (see samples, below). Please note: *For this endpoint, workitemsFilter may be required for some actions. If you see and error it may be because your query doesn't contain the required workItemsFilter parameter. To add that parameter, follow the steps, below:

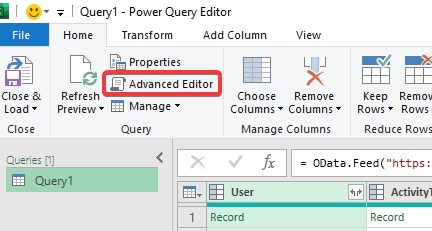

1. Select workItemsHierarchyAllLevels and click the Load button.
2. Double-click on the query to open the Power Query Editor.
3. Click Advanced Editor on the top-left part of the window.
4. Change the script by adding the workItemsFilter field like on the screenshot, below.
5. Click Done.
Similar to workItems object, the work item is extended with fields from Timetracker. It has all fields that workItems provides, along with the following additions:
- TrackedTotal - summary of all tracked time against the item and all children work items
- TrackedTotalBillable - summary of all billable time against the item and all children work items
- HasChildren - flag identifying that specific work item has children items
- Parent - optional property containing parent work item, if present
- RollupValue1-RollupValue5 - set of up to 5 fields allowing to roll-up numeric values to the work item from all children, e.g. rollup Effort or Story Points. Click here for more details.
To identify whether the item has children items, HasChildren is used and a call to the Children path:
/workItemsHierarchy(x)/Children
Sample usage:

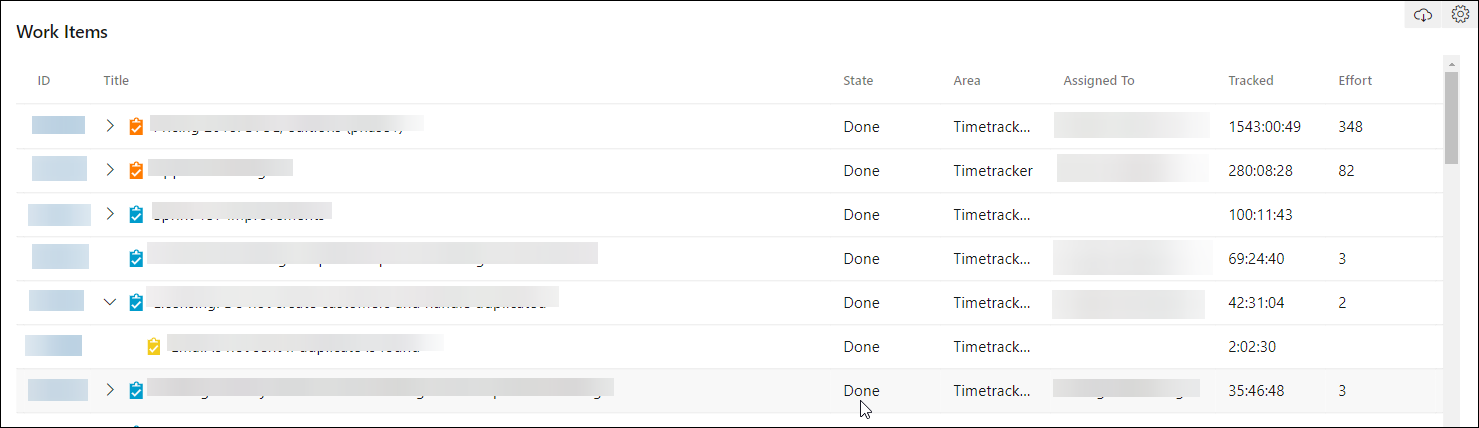

- Get a report for Epic work items that have time within a specific period, add summary for Effort as an additional field, and order by tracked time, descending:
/workItemsHierarchy?$select=System_Id,System_WorkItemType,System_TeamProject,
System_Title,TrackedTotal,TrackedItself,RollupValue1,
System_State,System_AreaPath,System_AssignedTo,HasChildren
&$filter=TrackedTotal gt 0&$orderby=TrackedTotal desc
&rollupFields=Microsoft.VSTS.Scheduling.Effort - Get a report for all Product Backlog Items and Bugs for a specific period (from 3.1-beta API version):
/v3.1-beta/workItemsHierarchyAllLevels?$select=System_Id,System_WorkItemType,System_TeamProject,System_Title,TrackedTotal,TrackedItself,System_State,
System_AreaPath,System_AssignedTo,HasChildren,Microsoft_VSTS_Scheduling_Effort
&$filter=TrackedTotal gt 0&workItemsFilter=System_WorkItemType eq 'Product Backlog Item' or System_WorkItemType eq 'Bug'
budgets
This endpoint provides data related to Timetracker budgets.
If you need to integrate to other systems based on Budgets, including related Work Items and Worklogs, this is the endpoint you should choose.
Usage scenarios:
- Get overview of all budgets
/budgets
Expanding / Retrieving linked objects
Some properties or linked objects can be retrieved by requesting specific paths or providing $expand parameters. This applies to workItems / workItemsHieararchy / workItemsHierarchyAllLevels endpoints.
ParentItem
Retrieves the Parent item of all work items returned by the API.
Sample:
/workItems?$expand=ParentItem
Parent
Retrieves the Parent of specific work items (x is the ID of work item). The endpoint is available in API v3.1-beta and later:
workItems(x)/Parent
Children
Endpoint provides access to the information of direct children work items.
Sample:
/workItems(x)/Children
DirectWorklogs / AllWorklogs
Returns worklogs related only to that specific work item (DirectWorklogs) or all worklogs from the item itself and all children (AllWorklogs). AllWorklogs endpoint is available in API v3.1-beta and later:
Sample:
/workItems(x)/DirectWorkLogs
/workItems(x)/AllWorklogs
Timetracker OData query extended parameters
- worklogsFilter for filtering worklogs before executing queries
- workItemsFilter for filtering work items before executing queries
- customFields for including own fields into response
- rollupFields for adding summary of specific fields
- prefilter (filter by Me)
We covered topics, above, that detailed how to get information on work items and pure worklogs.
When retrieving data by work items, you might need to get work items time tracked to those work items, during a specific timeframe and/or by a specific person, Activity Type, etc.
Timetracker provides extension syntax for filtering worklogs and work items in any of the endpoints listed above.
As additional parameter types are not part of the OData syntax, they do not have $-sign prefix.
Note: All filters use OData syntax; see syntax description here.
worklogsFilter
Use this filter to limit worklogs returned by the API. This filter should be applied first in the processing of the query, with all other filters applied after it, including workItemsFilter.
How worklogsFilter is applied, only green Worklogs will be processed
Example:
Let’s assume we need to pull a report on "How much time was spent on an Epic during a specific timeframe?". The following query will return all Epics, but it will not filter worklogs by date:
/workItemsHierarchy/?$select=System_Id,System_WorkItemType,System_TeamProject,System_Title,
TrackedTotal,TrackedItself
&$filter=System_WorkItemType eq 'Epic'
To achieve our goal we should define worklogsFilter in the request:
/workItemsHierarchy/?$select=System_Id,System_WorkItemType,System_TeamProject,System_Title,
TrackedTotal,TrackedItself
&$filter=System_WorkItemType eq 'Epic'
&worklogsFilter=Timestamp ge 2019-09-30T00:00:00Z and Timestamp lt 2019-11-05T00:00:00Z
The filter parameter ...
worklogsFilter=Timestamp ge 2019-09-30T00:00:00Z and Timestamp lt 2019-11-05T00:00:00Z
... will make the API return TotalTracked and TrackedItself for work items computed only by workLogs between 30 September and 5 November 2019.
workItemsFilter
Similar to worklogsFilter, this filter applies to the work items that will be processed by the API call. The filter is applied after worklogsFilter.
How workItemsFilter is applied, only green Worklogs and Work Items will be processed
Note: This filter is applied after the worklogsFilter
Example:
We want to build a report on “How much time was spent on Project A”.
The following query may help:
/worklogsOnly?$apply=aggregate(PeriodLength with sum as PeriodLength)
This will return the sum of all projects, not just Project A, so to filter by Project A _before_ aggregating, we should use a workItemsFilter:
/worklogsOnly?$apply=aggregate(PeriodLength with sum as PeriodLength)
&workItemsFilter=System_TeamProject eq 'Project A'
Now, the number will be computed only by work items from Project A.
workItemsFilter has an additional parameter: workItemFilterApplyTarget
This parameter accepts following values:
- AllWorkItems (default value): when this value is provided, the workItemsFilter will be applied to all work items
- RootWorkItems: when this value is provided, the workItemsFilter will be applied only to top-level work items (items that do not have parents)
customFields
Displays any custom string field for workItems
Endpoints: workItems; workItemsHierarchy
How to use: specify up to five (5) custom field names for each data type (string, numeric, boolean), separated by comma. They will appear in:
CustomStringField1...CustomStringField5 fields in result objects for string fields
CustomNumericField1...CustomNumericField5 fields in result objects for numeric fields
CustomBooleanField1...CustomBooleanField5 fields in result objects for boolean fields
Timetracker detects the type of passed field and puts the value in accordingly. All fields are sequentially numbered (e.g. when you select custom fields with different data types as described in the example below).
Example:
Let's say you have 'Project Code', 'Finance' and 'Order' custom fields in your work items. You can add a parameter this way:
/workItemsHierarchy?customFields=Custom.ProjectCode,Custom.Finance,Custom.Order
You'll get work items with fields such as:
"CustomStringField1": "648521",
"CustomStringField2": "Finance 2",
"CustomNumberField3": 3

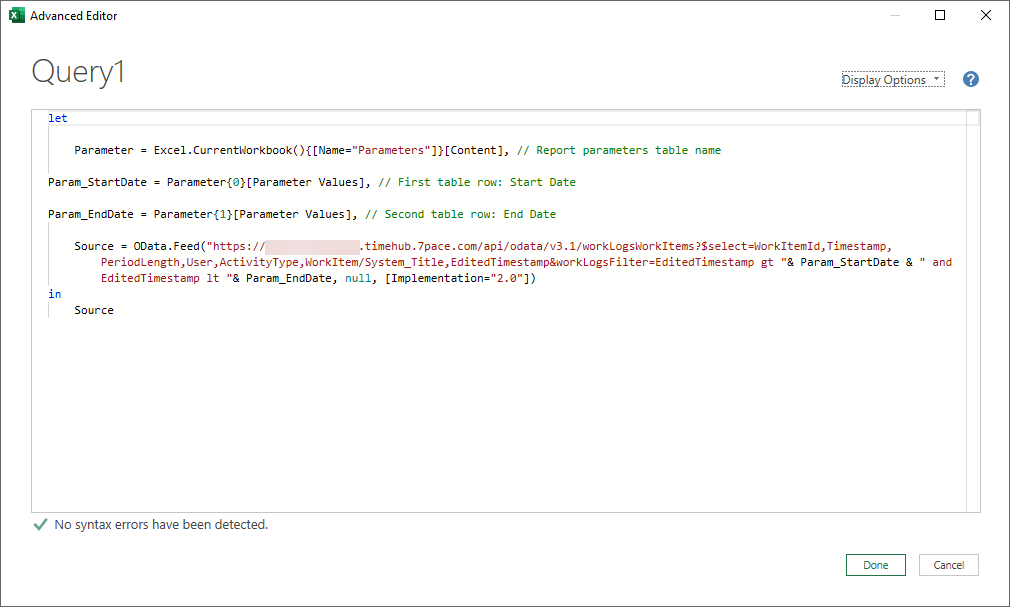

To use our customFields/rollupFields parameters in Excel or Power BI:

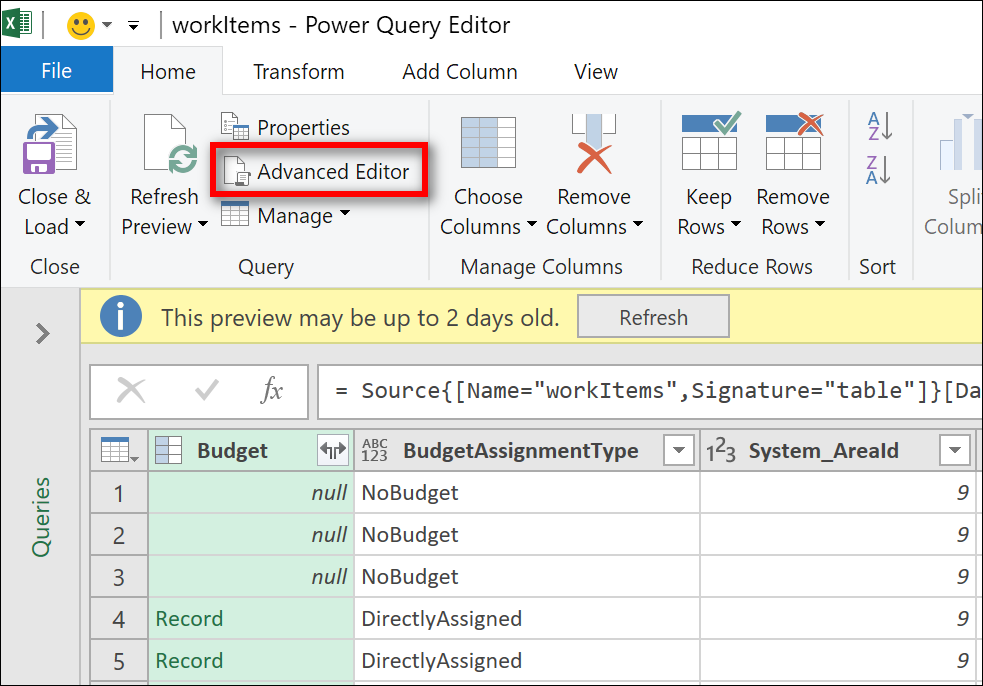

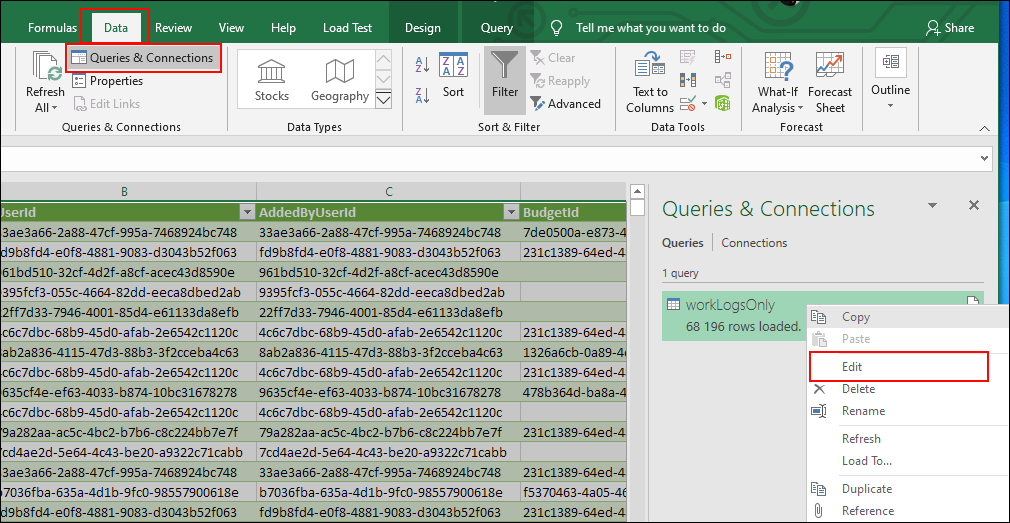

1. Double click on the query to to open Power Query Editor.
2. Click Advanced Editor in the top-left part of the window.
3. Add customFields/rollupFields parameter using "Query" statement with the syntax from the following screenshot and save the query.

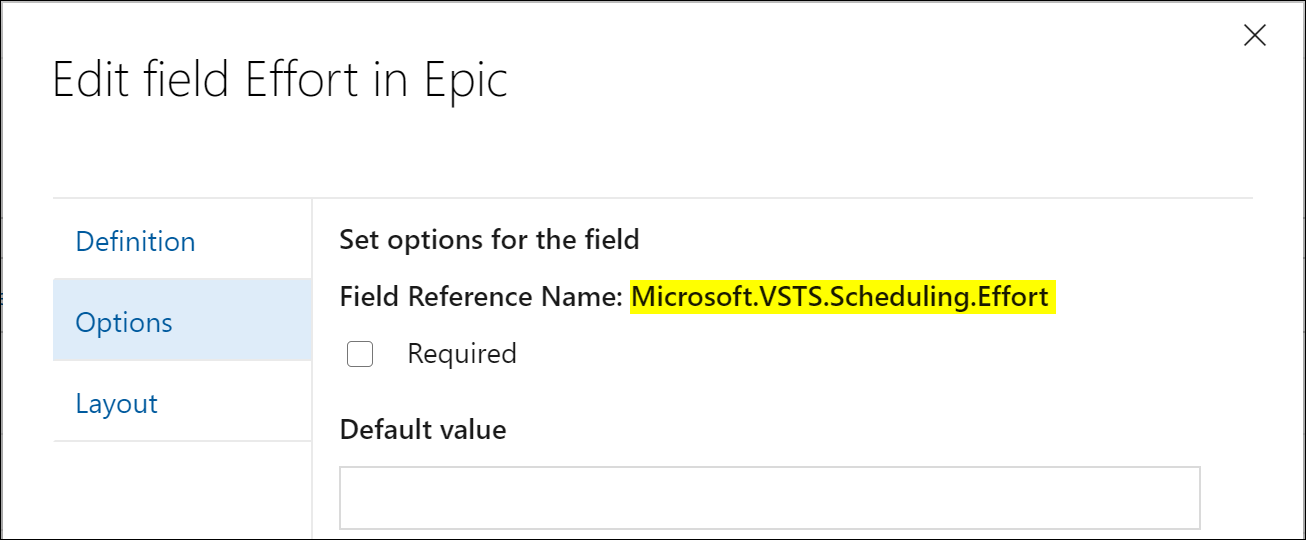

Field reference name for pt.3, above, can be found when editing field in process customization settings in DevOps (Organization Settings -> Process -> Select process -> Select Work Item Type -> Edit field).
rollupFields
Allows you to get roll-up summary fields that contain the sum of specified numeric field values from all children items, including the current item.
endpoints: workItemsHierarchy
How to use: specify up to five (5 ) roll-up field name,s separated by comma. They will appear in
RollupValue1 ... RollupValue5 fields in result objects.
Example:
Let's say you use the 'Effort' field in work items. If you'd like to sum efforts of an item an all its child items you can add a parameter this way:
/workItemsHierarchy?rollupFields=Microsoft.VSTS.Scheduling.Effort
You'll get work items with fields such as:
"RollupValue1": 47,
prefilter (filter by Me)
If you'd like to see just data related to your account only, you can use the query parameter prefilter=Me.
In this case, all data will be filtered by an authorized account that performs a query.
Default parameter value is prefilter=NoFilter (not required).
Budget information in worklogs and work items
The Reporting API follows the same behavior as Budgets, described here.
Every work item or worklog in the API has the following fields: BudgetId, Budget and BudgetAssignmnetType.
Budgets can be either inherited or directly assigned; the BudgetAssignmnetType field indicates what kind of assignment every item has.
The following BudgetAssignmentType values are possible in the ReportingAPI v3.0:
NotComputed
: Budget is not yet computed and has an undefined state. Due to the nature of Budget computation in ReportingAPI 3, it runs asynchronousley and has delays between creating work items in DevOps and proper budget assignment computation in Timetracker.NoBudget
: Budget was not set for either this item, for its parents or iterations of the item.DirectlyAssigned
: Budget was assigned directly to the work item.InheritedFromParent
: Budget was assigned to one of the parent work items. The closest parent is the defining budget.InheritedFromIteration
: Budget assigned to the iteration or any parent iteration of the work item. Closest parent iteration is the defining budget.
Widget Chart Parameter Options
Below, you will find the six (6) available widget types found on the Reporting page of 7pace Timetracker. We have listed the various parameters available within each widget chart type so that you can create your own widget or edit existing widgets and what fields you need to accomplish this.
To see our separate article with custom widgets gallery, please click here.

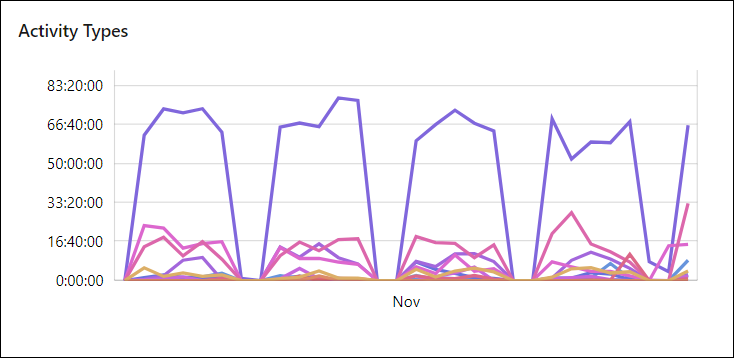

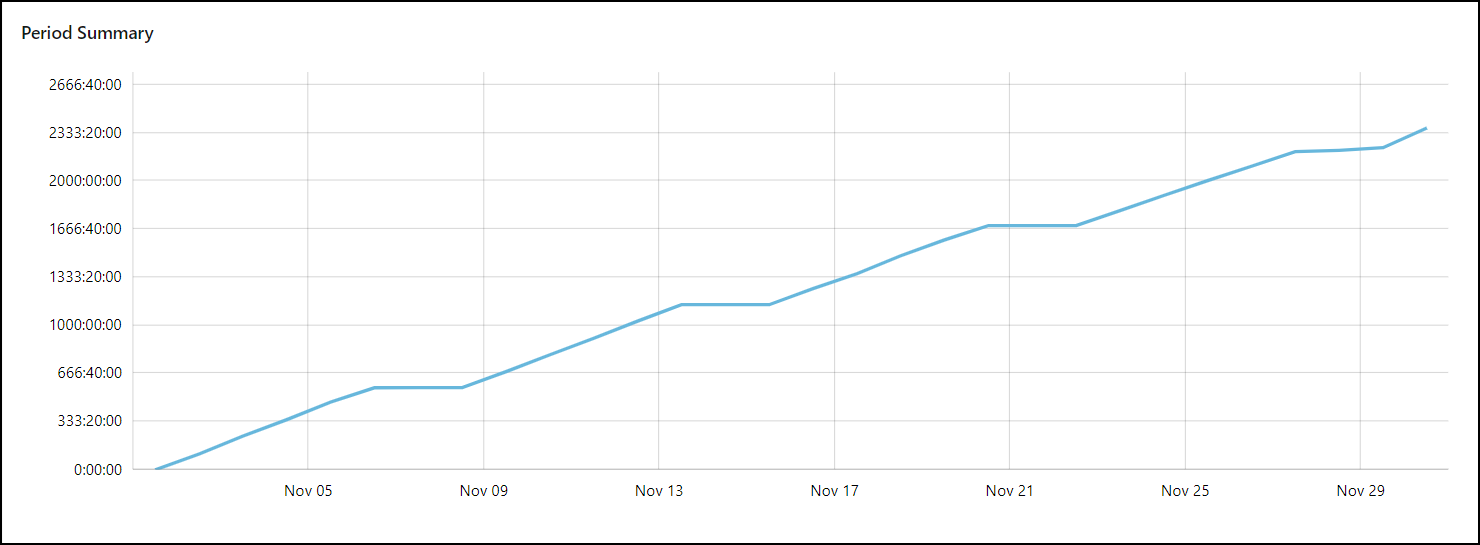

Line Chart Fields
{
"chartSettings": {
"strokeWidth": number,
"strokeColor": string, - //for example "#38ACEC"
"backgroundColor": string, - //for example "#38ACEC"
},
"xAxis": {
"type": "date" or "value" or "category" or "duration",
"title": string,
"rotation": number, - //Rotation of the axis title in degrees
"granularity": "minute" or "hour" or "day" or "week" or "month" or "year", - //Used to indicate what are the base units of your data.
"toolTipDisabled": boolean,
"minGridDistance": number, - //Minimum distance in pixels between grid elements.
"durationFormat": string,
"minValue": number, - //A minimum value for the axis scale. (Only for "duration" axios type)
},
"yAxis": {
"type": "date" or "value" or "category" or "duration",
"title": string,
"rotation": number, - //Rotation of the axis title in degrees
"granularity": "minute" or "hour" or "day" or "week" or "month" or "year", - //Used to indicate what are the base units of your data.
"toolTipDisabled": boolean,
"minGridDistance": number, - //Minimum distance in pixels between grid elements.
"durationFormat": string,
"minValue": number, - //A minimum value for the axis scale. (Only for "duration" axios type)
},
"series": {
"fieldY": string,
"fieldX": string
},
"colorField": string, - //field name where stored color value
"dataAdapters": [
{
"name": "NullToComment" or "YearMonthToDate" or "NotSetActivityTypeFormat" or "StrokeForLightColor" or "SumOverPeriod", "FillMissingDatePoints", "AggregateDataSetsByMutualField"
"params": string
}
]
}

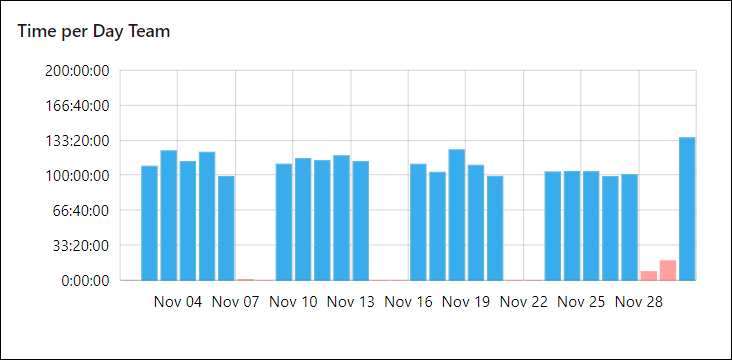

Column Chart fields:
{
"chartSettings": {
"backgroundColor": string, - //for example "#38ACEC"
},
"xAxis": {
"type": "date" or "value" or "category" or "duration",
"title": string,
"rotation": number, - //Rotation of the axis title in degrees
"granularity": "minute" or "hour" or "day" or "week" or "month" or "year", - //Used to indicate what are the base units of your data.
"toolTipDisabled": boolean,
"minGridDistance": number, - //Minimum distance in pixels between grid elements.
"durationFormat": string,
"minValue": number, - //A minimum value for the axis scale. (Only for "duration" axios type)
},
"yAxis": {
"type": "date" or "value" or "category" or "duration",
"title": string,
"rotation": number, - //Rotation of the axis title in degrees
"granularity": "minute" or "hour" or "day" or "week" or "month" or "year", - //Used to indicate what are the base units of your data.
"toolTipDisabled": boolean,
"minGridDistance": number, - //Minimum distance in pixels between grid elements.
"durationFormat": string,
"minValue": number, - //A minimum value for the axis scale. (Only for "duration" axios type)
},
"series": {
"fieldY": string,
"fieldX": string
},
"colorField": string, - //field name where stored color value
"dataAdapters": [
{
"name": "NullToComment" or "YearMonthToDate" or "NotSetActivityTypeFormat" or "StrokeForLightColor" or "SumOverPeriod", "FillMissingDatePoints", "AggregateDataSetsByMutualField"
"params": string - //parameters depends on adapter type
}
]
}

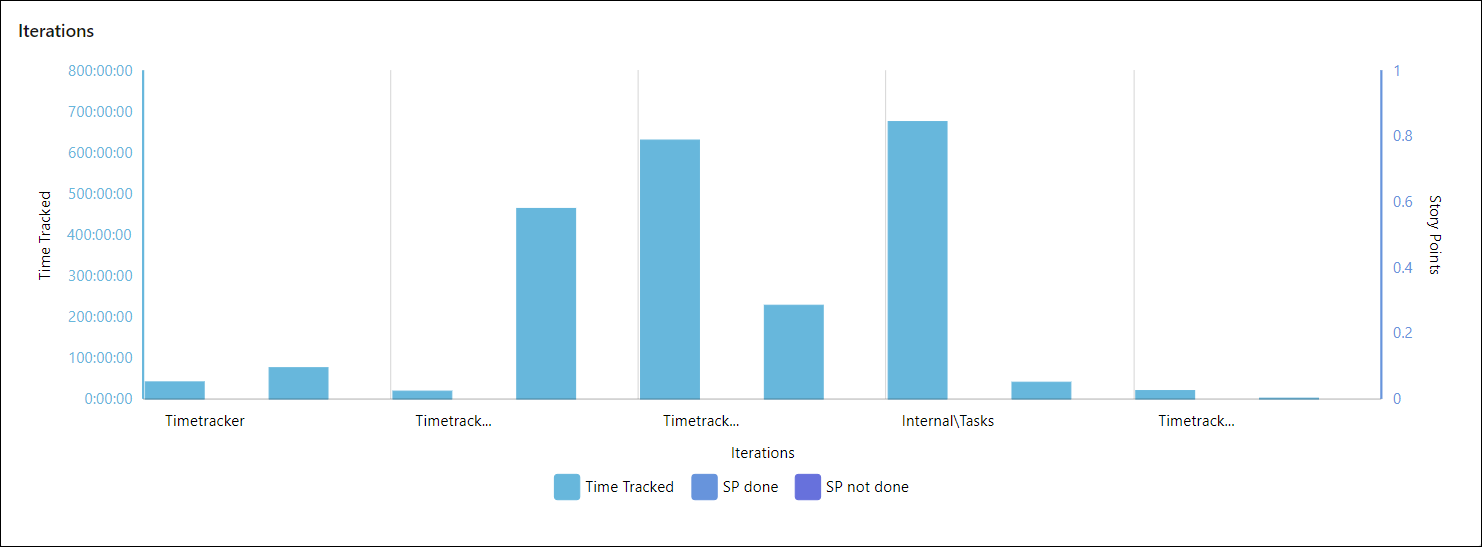

Stacked Bar Chart fields:
{
"chartSettings": {
"backgroundColor": string, - //for example "#38ACEC"
},
"xAxis": {
"type": "date" or "value" or "category" or "duration",
"title": string,
"rotation": number, - //Rotation of the axis title in degrees
"granularity": "minute" or "hour" or "day" or "week" or "month" or "year", - //Used to indicate what are the base units of your data.
"toolTipDisabled": boolean,
"minGridDistance": number, - //Minimum distance in pixels between grid elements.
"durationFormat": string,
"minValue": number, - //A minimum value for the axis scale. (Only for "duration" axios type)
"opposite": boolean - //Indicates whether Axis should be drawn on the opposite side of the plot area than it would normally be drawn based on chart's settings.
},
"yAxes": [{
"type": "date" or "value" or "category" or "duration",
"title": string,
"rotation": number, - //Rotation of the axis title in degrees
"granularity": "minute" or "hour" or "day" or "week" or "month" or "year", - //Used to indicate what are the base units of your data.
"toolTipDisabled": boolean,
"minGridDistance": number, - //Minimum distance in pixels between grid elements.
"durationFormat": string,
"minValue": number, - //A minimum value for the axis scale. (Only for "duration" axios type)
}],
"series": {
"fieldY": string, - //field name for category in X axis
"fieldX": string, - //field name for category in Y axis
"seriesFields": [
{
"field": string,
"stacked": boolean,
"axis": string,
"title": string
}
]
},
"dataAdapters": [
{
"name": "NullToComment" or "YearMonthToDate" or "NotSetActivityTypeFormat" or "StrokeForLightColor" or "SumOverPeriod", "FillMissingDatePoints", "AggregateDataSetsByMutualField"
"params": string - //parameters depends on adapter type
}
]
}

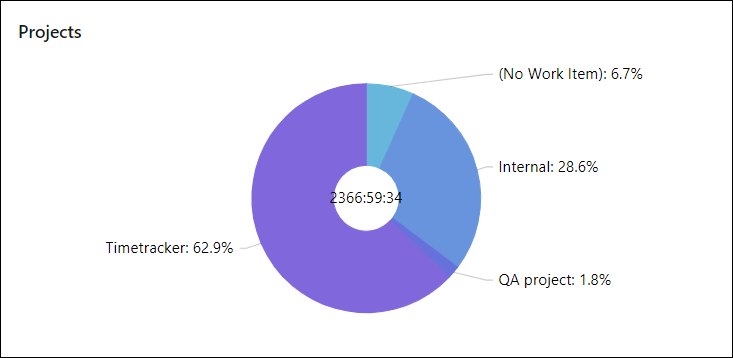

Pie/Donut Chart fields:
{
"chartSettings": {
"name": string, - //series name
"innerRadius": number, - //donut circle inner radius,
"radius": number, - //donut circle outer radius
"disableTitle": bool, - //define if show title in chart for each segment
"disableTicks": bool, - //should ticks be disabled
"disableLabels": bool, - //define if show labels
"labelsMaxWidth": number - //maximum label width in chart
"tooltip": string, - //tooltip text
"showPercent": bool, - //if show percent or just values
"units": string - //units name
},
"categoryField": string, - //field name where to put data from for category
"valueField": string, - //field name where to put data from for value
"valueFormat": string - //format string
"colorField": string, - //field name where stored color value
"dataAdapters": [
{
"name": "NullToComment" or "YearMonthToDate" or "NotSetActivityTypeFormat" or "StrokeForLightColor" or "SumOverPeriod", "FillMissingDatePoints", "AggregateDataSetsByMutualField"
"params": string - //parameters depends on adapter type
}
]
}

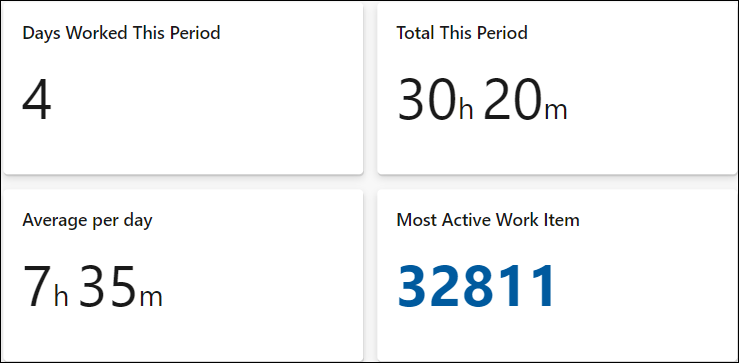

Number Chart fields:
{
"showCount": boolean, - //if true widget will show not the data itself, but their number
"formatter": string, - //formatter name to format number
"fieldName": string - //field name where to get data from
}
Table fields:
{
"columns": [{
"field": string || string[], - //field name can be as just string as array.
"title": string, - //column title
"formatter": string, - //formatter name to format column
"width": number - //column width
}
]
}
Drilldown Table fields:
{
"hierarchyField": string, -// parentId to filter children query
"columns": [{
"field": string || string[], - //field name can be as just string as array.
"title": string, - //column title
"formatter": string, - //formatter name to format column
"width": number - //column width
"expand": true, - //if column expandable
"child": {
"field": "yearMonth" //expand field to show
}
}
]
}
Data formatters
Data formatters allow modifications to be made in how data is presented in Widgets.
For example, worklogs time is saved in seconds and the API also returns it in seconds. However, most people want to see time displayed in hours or in "HH:MM" format. This is where data formatters come in.
TimeLength formatter
purpose: displays number field (number of seconds) in TimeLength format (for example: 69 seconds = 00:01:09)
how to use: add field "formatter": "TimeLength" to the column
example:
{
"columns": [
...,
{
"field": "TrackedItself",
"title": "Tracked",
"width": 100,
"formatter": "TimeLength"
},
...
]
}
NullToComment formatter
purpose: if a cell's value is null or empty, then view text "(No Work Item)"
how to use: add field "formatter": "NullToComment" to the column
example:
{
"columns": [
...,
{
"field": "System_AssignedTo",
"title": "Assigned To",
"formatter": "NullToComment",
"width": 150
},
...
]
}
Number formatter
purpose: displays the number field in the desired format
how to use: add field "formatter": "Number" and "format": "#.#" to the column.
example:
{
"columns": [
...,
{
"field": "System_Id",
"title": "ID",
"formatter": "Number",
"format": "#,###.00",
"width": 100
},
...
]
}
String formatter
purpose: displays field in string format
how to use: add field "formatter": "String" to the column
example:
{
"columns": [
...,
{
"field": "System_AssignedTo",
"title": "Assigned To",
"formatter": "String",
"width": 150
},
...
]
}
WorkItemId formatter
purpose: displays the work item id as a link that opens the work item
how to use: add field "formatter": "WorkItemId" to the column
example:
{
"columns": [
...,
{
"field": "System_Id",
"title": "ID",
"formatter": "WorkItemId",
"width": 100
},
...
]
}
WorkItemType formatter
purpose: displays the typeof work item
how to use: add field "formatter": "WorkItemType" and "field": ["System_WorkItemType", "System_TeamProject"] to the column
example:
{
"columns": [
...,
{
"field": [
"System_WorkItemType",
"System_TeamProject"
],
"title": "Type",
"formatter": "WorkItemType",
"width": 100
},
...
]
}
WorkItemIndicator formatter
purpose: displays the title of the work item and its type
how to use: add field "formatter": "WorkItemIndicator" and "field": ["System_Title", "System_WorkItemType", "System_TeamProject"] to the column
example:
{
"columns": [
...,
{
"field": [
"System_Title",
"System_WorkItemType",
"System_TeamProject"
],
"title": "Title",
"formatter": "WorkItemIndicator",
"width": 100
},
...
]
}
WorkItemIdWithIndicator formatter
purpose: displays the title of the work item with its type as a link that opens the work item
how to use: add fields "formatter": "WorkItemIndicator" and "field": ["System_Title", "System_WorkItemType", "System_TeamProject"] to the column
example:
{
"columns": [
...,
{
"field": [
"System_Title",
"System_WorkItemType",
"System_TeamProject"
],
"title": "Title",
"formatter": "WorkItemIdWithIndicator",
"width": 100
},
...
]
}
LocaleSettingsDateTime formatter
purpose: displays DateTime value in format that is defined in Timetracker Locale Settings
how to use: add field "formatter": "LocaleSettingsDateTime" to the column
example:
{
"columns": [
...,
{
"field": "System_CreatedDate",
"title": "Date",
"formatter": "LocaleSettingsDateTime",
"width": 200
},
...
]
}
CustomDateTime formatter
purpose: displays DateTime value in the format that is defined in "format" field DateTime formatting article
how to use: add fields "formatter": "LocaleSettingsDateTime" and "format": "DD.MM.YYYY H:mm" to the column
example:
{
"columns": [
...,
{
"field": "System_CreatedDate",
"title": "Date",
"formatter": "CustomDateTime",
"format": "DD.MM.YYYY H:mm",
"width": 200
},
...
]
}
DateTimeAgo formatter
purpose: displays DateTime value in DevOps Azure format (for example: "Today at 2:30 PM")
how to use: add field "formatter": "DateTimeAgo" to the column
example:
{
"columns": [
...,
{
"field": "System_CreatedDate",
"title": "Date",
"formatter": "DateTimeAgo",
"width": 200
},
...
]
}
MathExpression formatter
purpose: performs math expressions on desired fields
how to use: add
"field": ["Field_0", "Field_1", "Field_N"], // any fields from the model
"formatter": "MathExpression",
"format": {
"resultFormat": "#.##" // see Number Formatter
}
supported operations: see this reference
example:
{
"columns": [
...,
{
"field": [
"TrackedTotal", // {0}
"Microsoft.VSTS.Scheduling.Effort" // {1}
],
"title": "Pace",
"width": 80,
"formatter": "MathExpression",
"format": {
"expression": "{0} / 3600 / {1}",
"resultFormat": "#.#"
}
},
...
]
}
How Reporting works
The Reporting API is based on the asynchronous building of data in the background when Reporting is enabled for your organization.
As soon as the API is enabled and the Service Account is configured, 7pace Timetracker queues the DevOps API and fetches information about work items. This information is temporarily stored in an encrypted database hosted by 7pace. To build a relationship between work items and hierarchies, Timetracker also processes work item links and temporarily stores Parent-Child relations.
Information on work items and string, decimal and boolean field types are only stored temporarily; HTML and text fields such as "Description" are never stored, even temporarily.
The background job runs periodically within a two-minute-to-24-hour time-range, depending on changes made in work items within your DevOps organization. Information about when reporting was last processed, when it will run next, and the option to schedule an update is located in Settings -> Reporting and API -> API.
After a period 60 days of inactivity in the Reporting API, all data is removed from our databases, and Reporting becomes disabled. To reactivate the Reporting API, please navigate to the Reporting section in Timetracker or click "Schedule update now".
The Reporting API is based on OData and provides multiple endpoints. The full overview is located here.

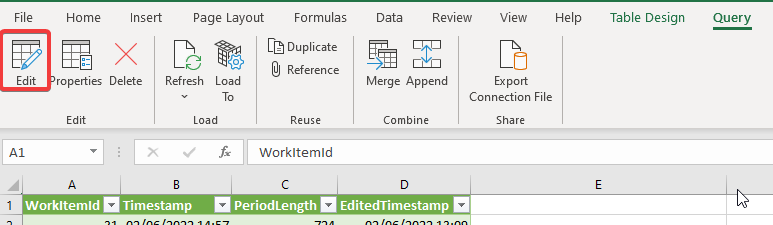

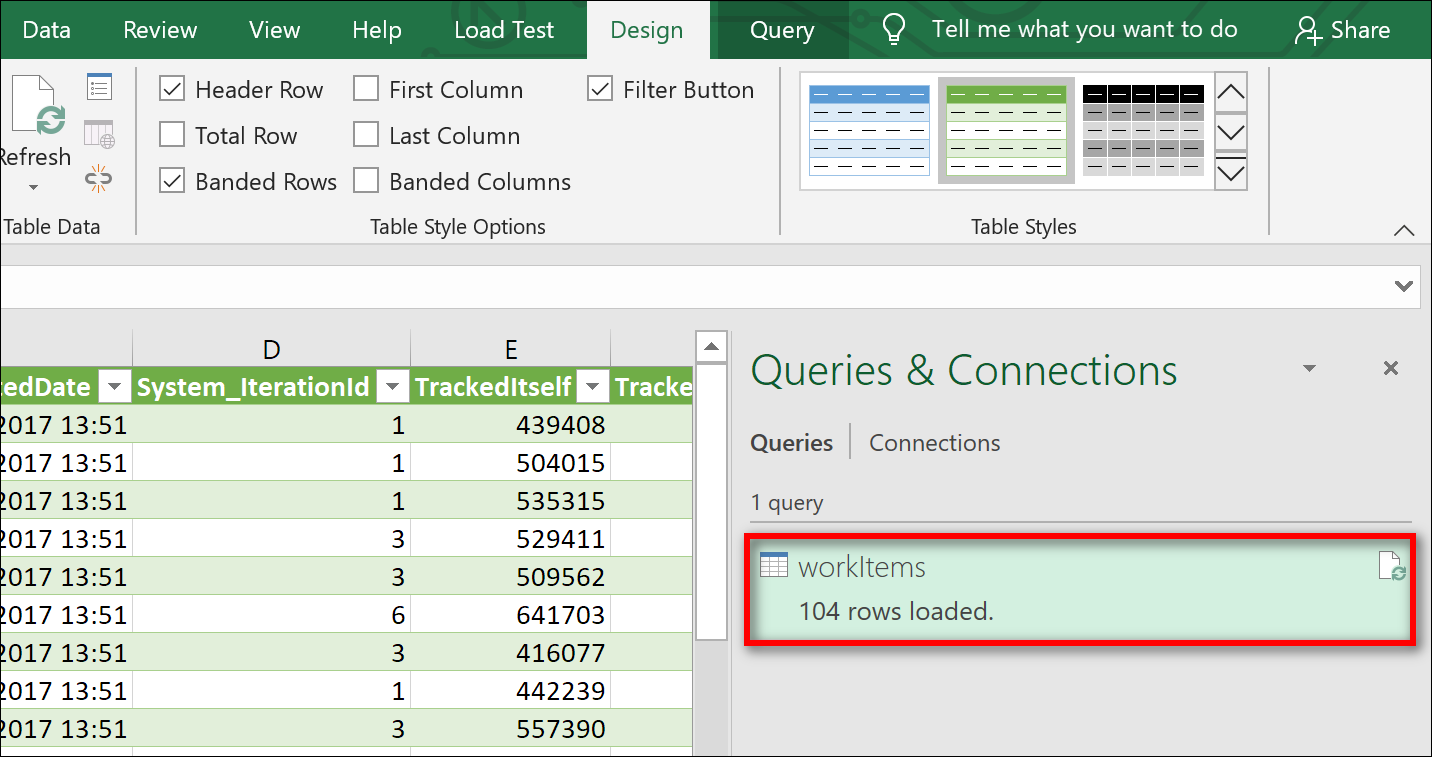

Connecting to API (Excel, C#, python, javascript)
To connect to the API, you must first generate an access token. This can be done in Settings -> Reporting & REST API section -> click "Create New Token".
Use generated token to connect to the API from any application.
Excel / Power BI
To connect to the API with Excel, you should navigate to the "Data" tab, click "Get Data" menu item and select "From Other Sources" -> "From OData Feed".
On the resulting new window, insert "Your API Root" value. Next, use "Basic" authorization, keep the username field empty, and use the token generated earlier as the password.
Next, select the endpoint you are interested in and click "Load". You can also apply modifications to the data before it is loaded, like expanding properties, applying additional filtering or grouping.
See following recording for the reference:
Filtering data / expanding work item columns
To get filtered worklogs, you can use a standard OData Feed $filter query parameter:
https://docs.microsoft.com/en-us/graph/query-parameters
It can be done in Excel by Power Query.

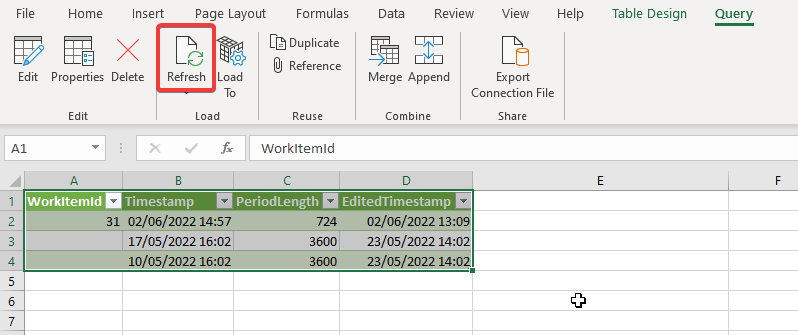

Select the Data tab -> Queries & Connections and then click on "Edit":
You can filter values there using column filters.
All changes will appear in the Advanced Editor query. This mean that data is filtered on the server side.
To get the work item title, the worklogsWorkItems endpoint can be used to get the worklogs list with work items assigned. This endpoint returns the WorkItem column as a record - it can be expanded with all the DevOps fields that you need.
C#
There is sample code available on github with console application connecting to the API. Please check the application and source code to configure a connection to 7pace Timetracker.
Python
"""
This module accesses the 7pace time tracking Reporting API
Example usage:
.. code-block:: python
7pace_time_test.py
"""
import argparse
import base64
import json
import requests
def main(options):
authentication = ('', '<your API token>')
headers = {'$select': 'System_Id,System_WorkItemType,System_TeamProject,System_Title,TrackedTotal,TrackedItself,RollupValue1,System_State,System_AreaPath,System_AssignedTo,HasChildren', '$filter': 'TrackedTotal gt 0', '$orderby': 'TrackedTotal desc', 'rollupFields': 'Microsoft.VSTS.Scheduling.StoryPoints'}
response = requests.get('<YOUR API ROOT>/workItemsHierarchy', auth=authentication, headers=headers).json()
print (response)
if __name__ == '__main__':
# pylint: disable=invalid-name
parser = argparse.ArgumentParser(description='Access the 7pace time tracking REST API')
main(parser.parse_args())
JavaScript
var request = require('request');
var options = {
'method': 'GET',
//this is sample request, use your query here
'url': 'https://%ORG_NAME%.timehub.7pace.com/api/odata/v3.0/worklogsWorkItems?$top=1&$select=WorkItem/System_Id,Id',
'headers': {
'Authorization': 'Bearer %TOKEN%' //token is generated on Settings -> Reporting & REST API
}
};
request(options, function (error, response) {
if (error) throw new Error(error);
console.log(response.body);
});
Comments
0 comments
Please sign in to leave a comment.
